Toplink knuckle/hook 460, M36 cat.2/3 CBM

Brand CBM

MPN3PGCGH2847

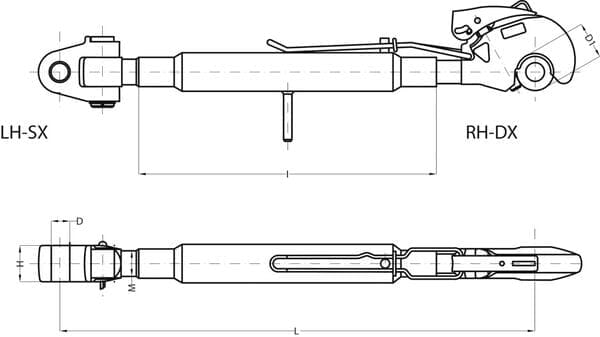

  • Linkage parts, Toplink knuckle/hook 460, M36 cat.2/3 CBM, CBM 1

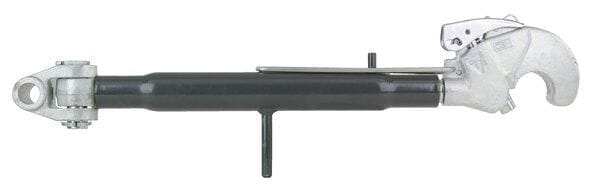

  • Linkage parts, Toplink knuckle/hook 460, M36 cat.2/3 CBM, CBM 2
Type
Mechanical top link
Connections category
Knuckle - Hook
Category tractor side
2
Category machine side
3
Connection diameter tractor side [mm]
28
Min. working length [mm]
665
Max. working length [mm]
960
Thread size
M36
Thread pitch [mm]
3
Rod length [mm]
460
Length yoke head [mm]
66
Length hook head [mm]
66
Yoke head width [mm]
66
Hook ball outside diameter [mm]
60
Thread type
Metric
Pitch of thread [mm]
3
Show all specifications Show less
Product description
Toplink knuckle/hook 460, M36 cat.2/3 CBM

Toplink with hook
