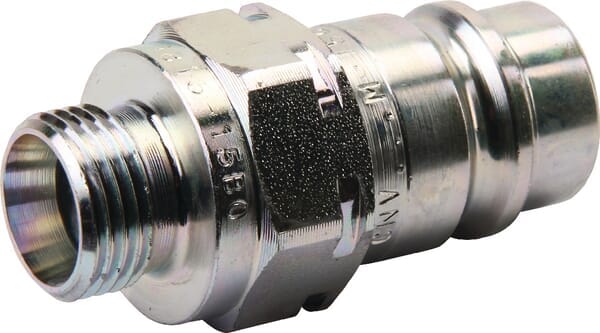

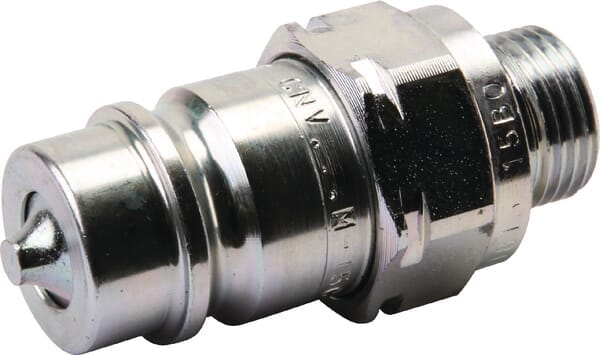

QRC male 1/2" - M18x1,5-12L

Brand Faster

MPNCNV0821815M

Type
Straight
Connection type
Quick release
Thread type
Metric
Thread gender
Male
Pitch of thread [mm]
1,5
Connection diameter [mm]
20,5
Total length housing [mm]
57
Second connection type
Thread
Second connection thread type
Metric
Second connection thread gender
Male
Second connection diameter [mm]
12
Second connection pitch of thread [mm]
1,5
Flow rate [l/m]
75
Min. working temperature [°C]
-25
Max. working temperature [°C]
125
Max. working pressure [BAR]
250
ISO Standard
7241-A|8434-1-L
Weight [kg]
0,1002
Colour
Red
Material
Carbon steel
Surface treatment
Passivated
Replacement number
DUC8949546
Show all specifications Show less
Product description
QRC male 1/2" - M18x1,5-12L

Quick release couplings type CNV
