Housing unit UCFL
Brand INA/FAG
EAN4047643247627
MPNUCFL208
Bearing unit type
Flanged
Bore diameter [mm]
16
Thread type
Metric
Total height housing [mm]
36
Distance mounting holes [mm]
144
Overall length [mm]
175
Overall height [mm]
51,2
Housing type
Oval flange
Inner diameter [mm]
40
Original number
UCFL208-J7
Pieces in package
1
Replacement number
VLD3754
Show all specifications Show less
Product description

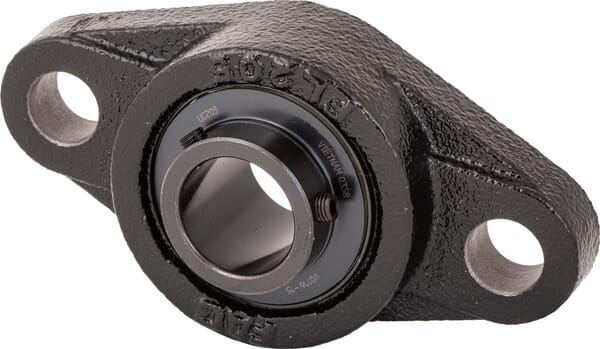

Housing unit UCFL

These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
