Hexagon socket head cap screw DIN912 M5x12 steel 12.9 Kramp

Brand Kramp

EAN8716024690197

MPN912512129B
  • Fasteners, Hexagon socket head cap screw DIN912 M5x12 steel 12.9 Kramp, Kramp 1
  • Fasteners, Hexagon socket head cap screw DIN912 M5x12 steel 12.9 Kramp, Kramp 2
  • Fasteners, Hexagon socket head cap screw DIN912 M5x12 steel 12.9 Kramp, Kramp 3
Type of bolt
Rounded bolt
Thread length [mm]
12
Head height [mm]
5
Wrench width [mm]
4
Thread size
M5
Length [mm]
12
Head outside diameter [mm]
8,5
Profile type
P2
Thread type
Metric
Measurements type
Metric
Thread type
Metric
Thread pitch [mm]
0,8
Quality of material
12.9 (steel
DIN standard
912
ISO standard
4762
Set
No
Weight per 100 pieces [kg]
0,3
Weight [kg]
0,003
Material
Steel
Replacement number
030005012
Show all specifications Show less
Product description

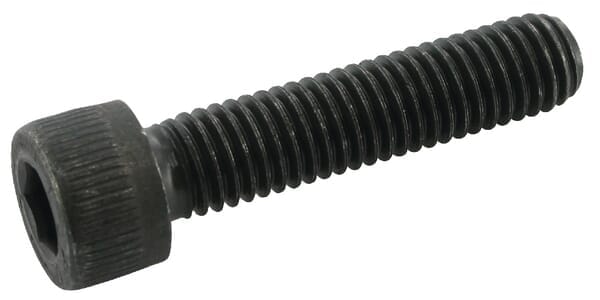

Hexagon socket head cap screw DIN912 M5x12 steel 12.9 Kramp

Cylinder head screw with hexagon socket. Note: These can be supplied partially or fully threaded. This is not specified by DIN.
