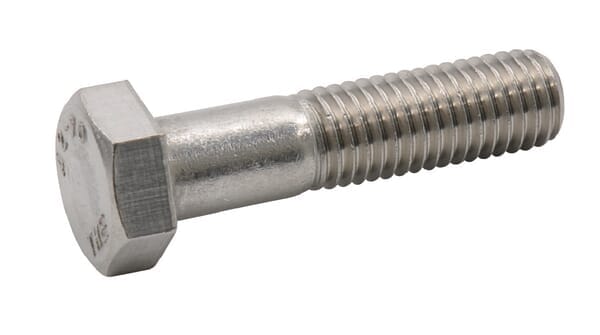

Hexagon head bolt DIN931 M20x150 steel zinc-plated 10.9 Kramp

Brand Kramp

EAN8716106354436

MPN93120150109P001
  • Fasteners, Hexagon head bolt DIN931 M20x150 steel zinc-plated 10.9 Kramp, Kramp 1
  • Fasteners, Hexagon head bolt DIN931 M20x150 steel zinc-plated 10.9 Kramp, Kramp 2
Type of bolt
Hexagonal bolt

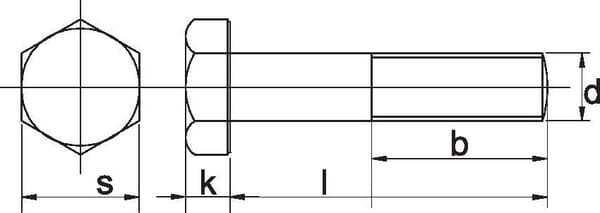

Thread length [mm]
52
Head height [mm]
12,5
Wrench width [mm]
30
Thread size
M20
Length [mm]
150
Thread type
Metric
Measurements type
Metric
Thread type
Metric
Thread pitch [mm]
2,5
Quality of material
10.9 (steel)
DIN standard
931
ISO standard
4014
Weight per 100 pieces [kg]
42,2
Colour
Grey
Material
Steel
Surface treatment
Galvanised
Pieces in package
1
Show all specifications Show less
Product description
Hexagon head bolt DIN931 M20x150 steel zinc-plated 10.9 Kramp

Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively.
