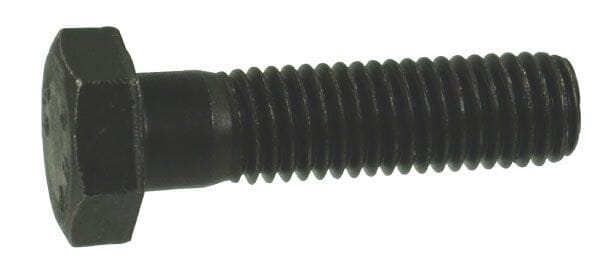

Hexagon head bolt DIN931 M10x50 steel 10.9 Kramp
Brand Kramp
EAN8716106609017
MPN9311050109B
Type of bolt
Hexagonal bolt
Thread length [mm]
26
Head height [mm]
6,4
Wrench width [mm]
16
Thread size
M10
Thread type
Metric
Measurements type
Metric
Thread type
Metric
Thread pitch [mm]
1,5
Quality of material
10.9 (steel)
DIN standard
931
ISO standard
4014
Set
Yes
Length [mm]
50
Weight per 100 pieces [kg]
4,11
Weight [kg]
4,11
Material
Steel
Pieces in package
25
Replacement number
021410050
Show all specifications Show less
Product description
Hexagon head bolt DIN931 M10x50 steel 10.9 Kramp

Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively.
