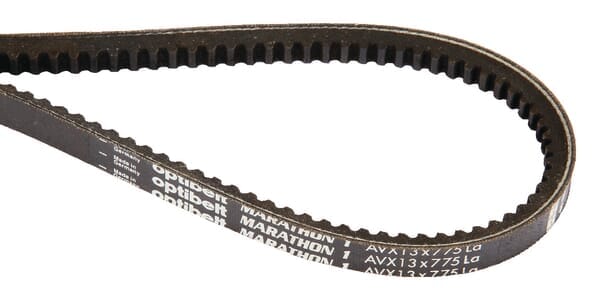

Fan belt 13x775

Brand Optibelt

EAN4014486110012

MPNAVX13775
  • Transmission, Fan belt 13x775, Optibelt 1
  • Transmission, Fan belt 13x775, Optibelt 2
  • Transmission, Fan belt 13x775, Optibelt 3
  • Transmission, Fan belt 13x775, Optibelt 4

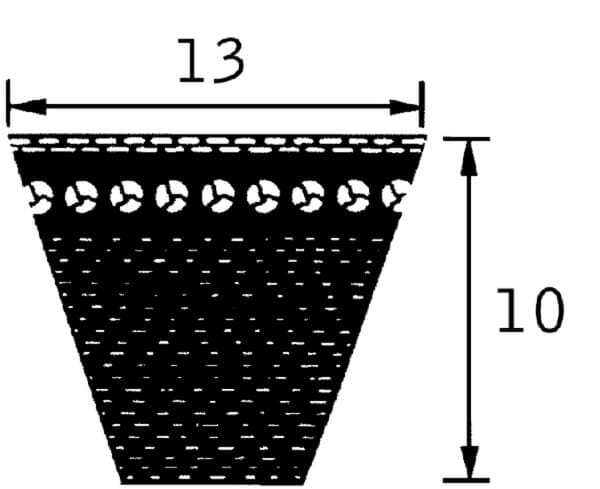

Width [mm]
13
Height [mm]
10
Outside length [mm]
775
Pitch length [mm]
757
Inside length [mm]
712
Profile type
AVX13
Features
Oil resistant
Number of belt ribs
1
Material tension chord
Polyester
Min. working temperature [°C]
-40
Max. working temperature [°C]
120
Max. beltspeed [m/s]
55
Min. disc diameter [mm]
80
Weight [kg]
0,118
Material
Rubber
Replacement number
21003949803
Show all specifications Show less
Product description
Fan belt 13x775

Fan belts profile AVX 13
