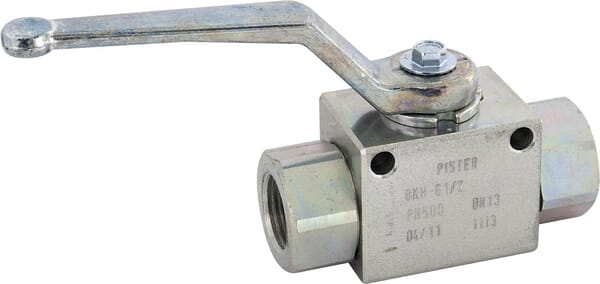

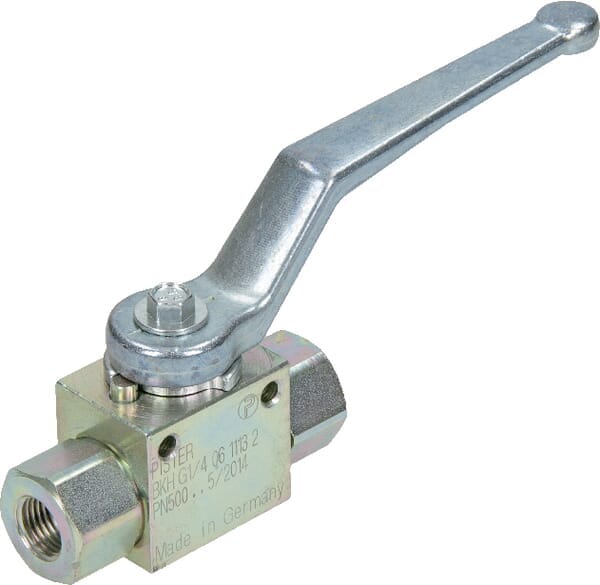

Ball valve 1/4" BSP+fastening

Brand Pister

MPNKHR04B

  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 1
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 2
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 3
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 4
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 5
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 6
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 7
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 8
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 9
  • Irrigation, Ball valve 1/4" BSP+fastening, Pister 10
Type
Two-way
Wrench size nut [mm]
22
Connection type
Thread
Thread type
G
Connection thread diameter [inch]
1/4"
Safety factor code
1,5
Number of ports
1
Total length housing [mm]
36,2
Housing height [mm]
32
Housing width [mm]
26
Inside diameter [mm]
6
Min. working temperature [°C]
-20
Max. working temperature [°C]
60
Max. working pressure [BAR]
500
Material
Steel
Surface treatment
Passivated
Replacement number
DUC3029294
Show all specifications Show less
Product description
Ball valve 1/4" BSP+fastening
