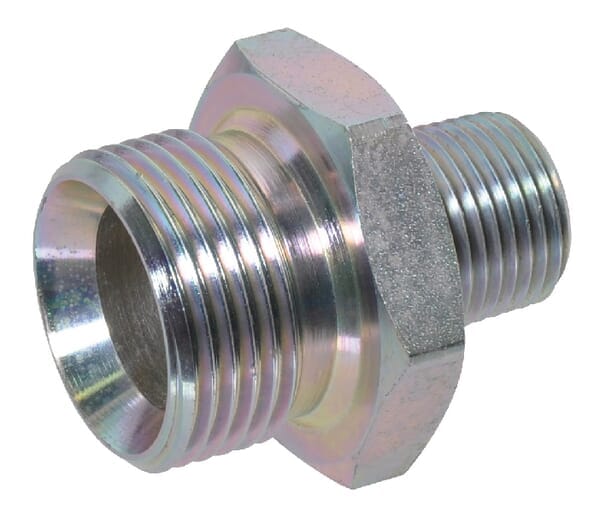

Adaptor M 1/2 BSP x 3/4 NPT

Brand Burnett & Hillman

MPNVNBN0812

  • Hydraulics, Adaptor M 1/2 BSP x 3/4 NPT, Burnett & Hillman 1
  • Hydraulics, Adaptor M 1/2 BSP x 3/4 NPT, Burnett & Hillman 2
  • Hydraulics, Adaptor M 1/2 BSP x 3/4 NPT, Burnett & Hillman 3
Type
Straight
Connection type
Thread
Thread type
BSP Parallel
Thread gender
Male
Connection diameter [inch]
1/2"
Total length housing [mm]
48
Angle [°]
60
Second connection type
Thread
Second connection thread type
Other
Second connection thread gender
Male
Second connection diameter [inch]
3/4"
Max. working pressure [BAR]
280
DIN standard
7627
Material
Steel
Surface treatment
Zinc-plated
Replacement number
B21012BK0812
Show all specifications Show less
Product description
Adaptor M 1/2 BSP x 3/4 NPT

Adaptor M-M BSP/NPT VNBN
